Mechanised paver clamps
De Schans BV is a supplier of Probst paver clamps and the simple laying clamp produced by Gebr. Geens (hereafter referred to as Geens clamp).
The Probst installation clamps have the type HVZ standard, HVZ uni 1 and HVZ uni 2. The HVZ standard is the simple entry clamp and is new no longer available.
THE PROBST HVZ UNI 2 IS THE NEWEST HYDRAULIC LAYING CLAMP FROM PROBST.
The HVZ uni 2 has been further developed and has the following advantages over its predecessor the HVZ uni. High-quality materials and an innovative design have made the HVZ-UNI-II lighter up to 220 kg. The main clamping arm is much easier to adjust via a spindle with integrated spring construction, instead of the previous chain centring method. Significantly increased clamping force for trouble-free movement of paving stones that are not dimensionally stable (3 times greater than with the HVZ-UNI). New suspension – so that the clamp has a shorter and steadier suspension from the machine. The most commonly delivered mechanical packages can be processed with the Probst laying clamp. Both baked and concrete clinkers can be processed. Because the clamp comes standard with 4 hoses and the unique blade system on the side grippers, the laying clamp achieves very secure clamping. An adjustment spanner enables the width of the side grippers to be adjusted continuously to the machine packages. Because of the 4 hose system, the clamp can always work at the optimal pressure.
Main clamp opening | 580-1260 mm |
Side gripper opening | 960-1440 mm |
Brick thicknesses | 50-160 mm |
HYDRAULIC LAYING CLAMP PROBST HVZ UNI
The Probst HVZ uni is a hydraulic laying clamp that can be attached to the arm of a mini shovel or excavator. The most commonly delivered mechanical packages can be processed with the Probst laying clamp. Both baked and concrete clinkers can be processed. Because the clamp comes standard with 4 hoses and the unique blade system on the side grippers, the laying clamp achieves very secure clamping.
An adjustment spanner enables the width of the side grippers to be adjusted continuously to the machine packages.
Because of the 4 hose system, the clamp can always work at the optimal pressure.
It is also possible to order the clamp with a phase sequence valve. This makes it possible to work with only 4 hoses with a rotator in-between.
Technical details:
- Main clamp opening: : 600 – 1240 mm
- Side clamps opening: : 990 – 1480 mm
- Net weight: 210 kg
- Wheel drive: Hydraulic
- Max. work pressure: 190 bar
- Min. work pressure: 90 bar
- Load capacity: 400 kg
Elleboogverband en keeper ( onder 45˚C )
Elleboogverband en keeper ( onder 45˚C )

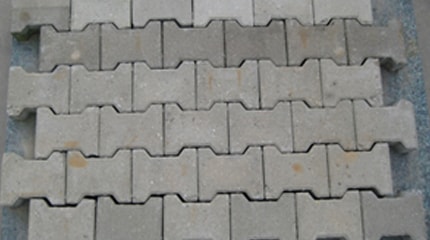

H-profiel
tegel half steensverband:
Blokverband
Blokverband
